Scott Creek 4 - Test Tile - Clay Extruder Die
Scott Creek 4 - Test Tile - Clay Extruder Die
Couldn't load pickup availability

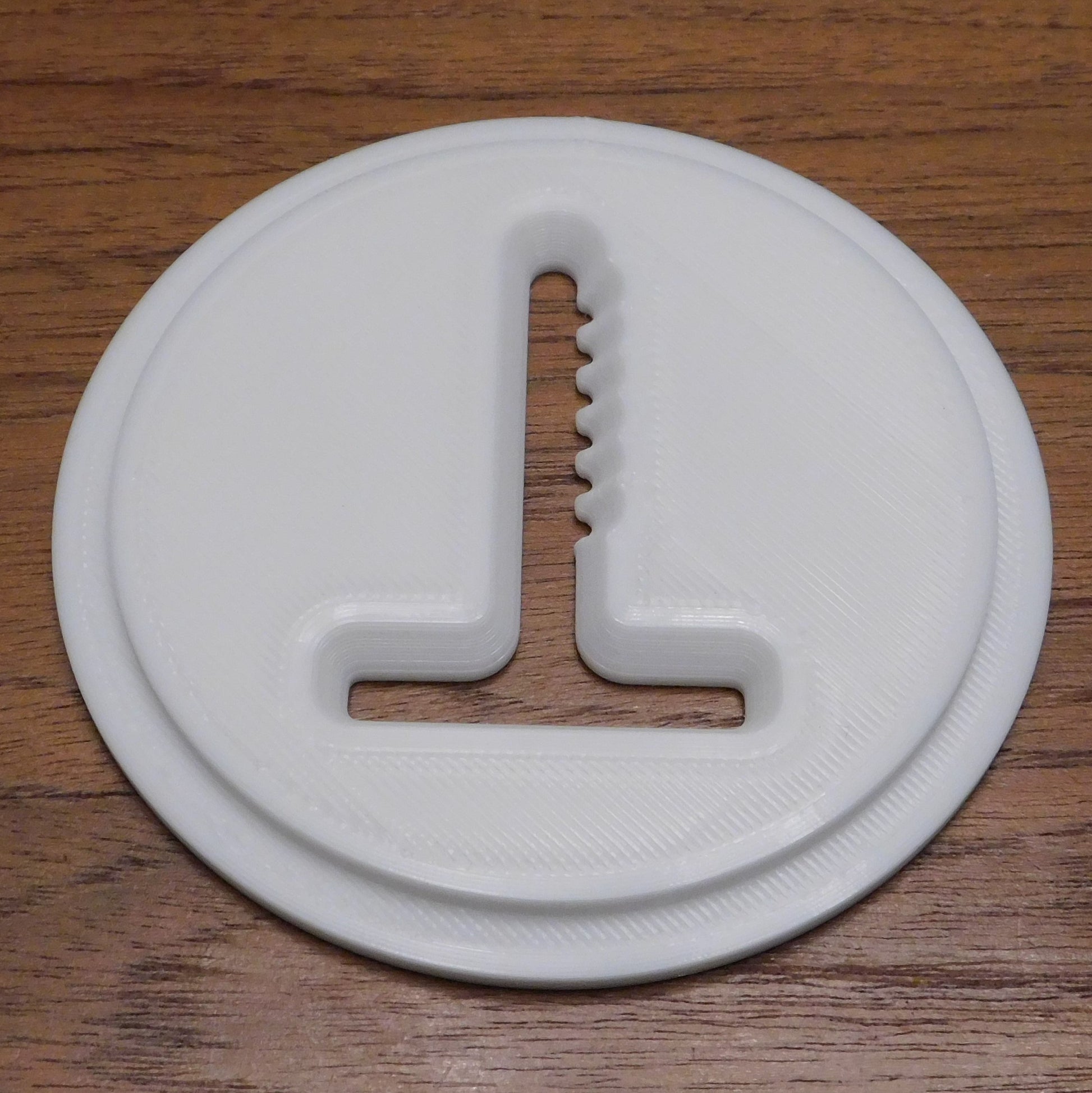

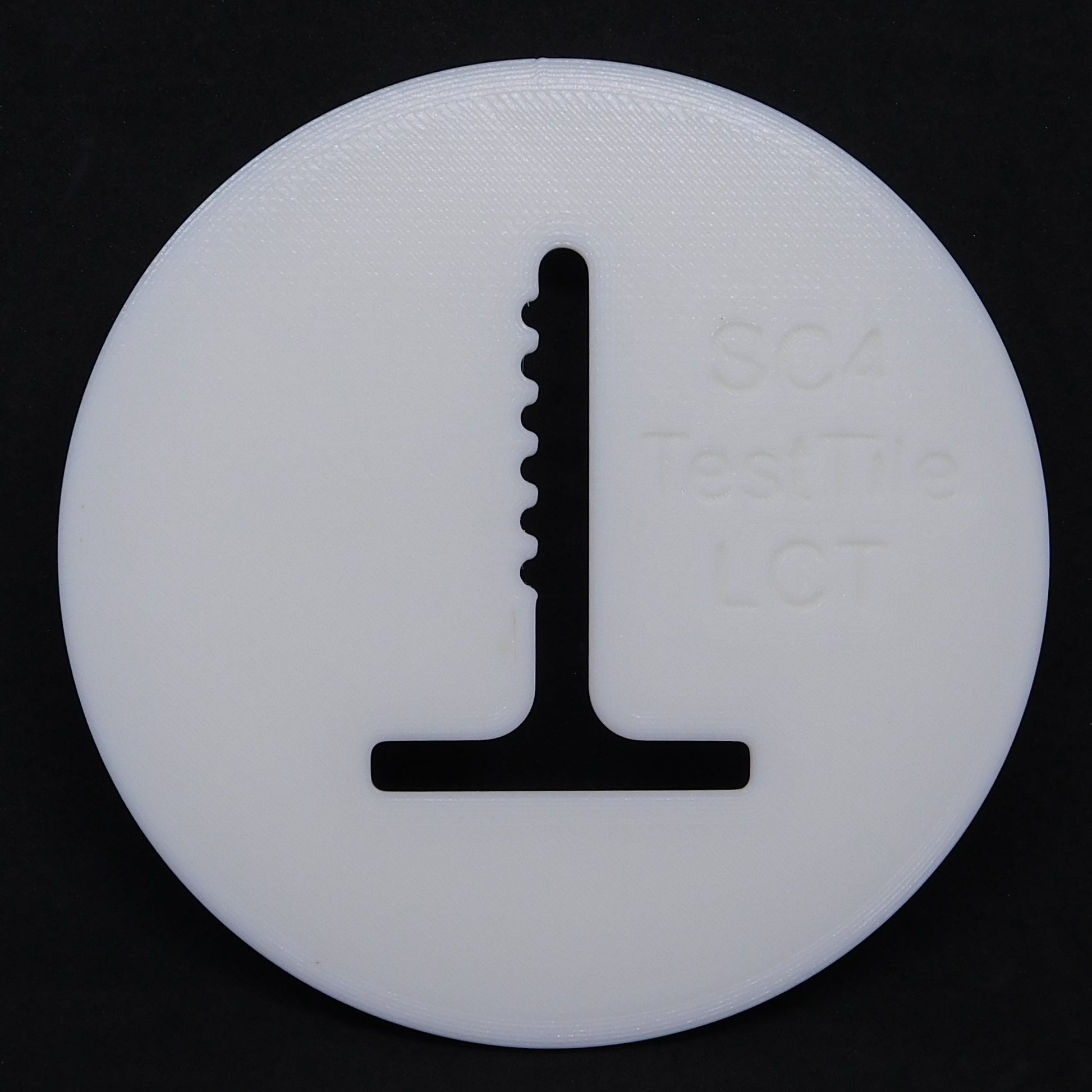

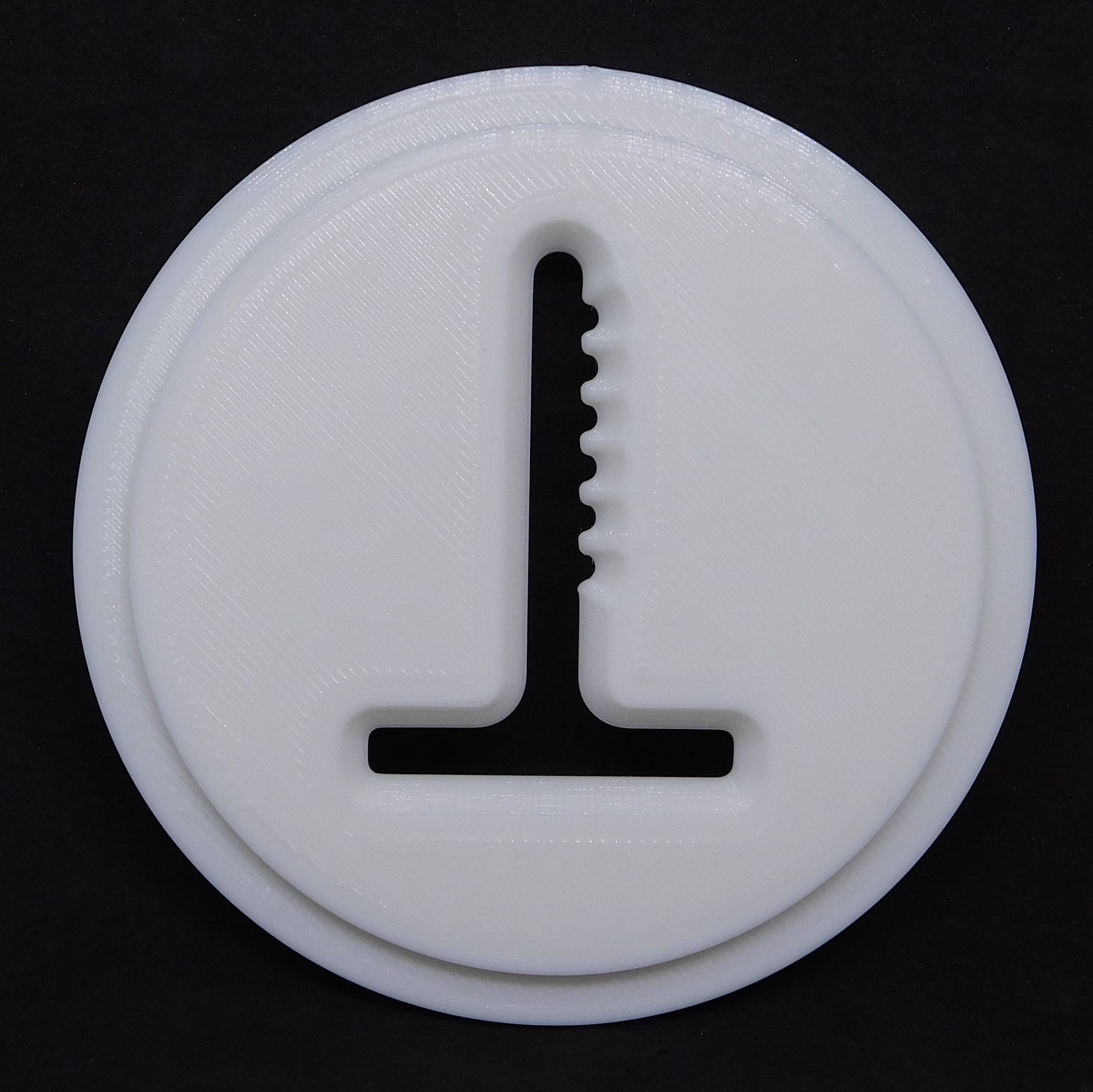

This die extrudes a shape to test glazes.
The tile has several features that might be of interest during glaze testing. On one side, a section of ridges tests how a glaze breaks across surfaces. The opposite side is smooth to see how the glaze flows down a straight wall. There is room below the ridges for a small stamp. The base is stable to stand in a kiln, but narrow enough to hang the tile on a wall, if you poke a small hole at the top.
The die fits in a Scott Creek 4" round extruder.

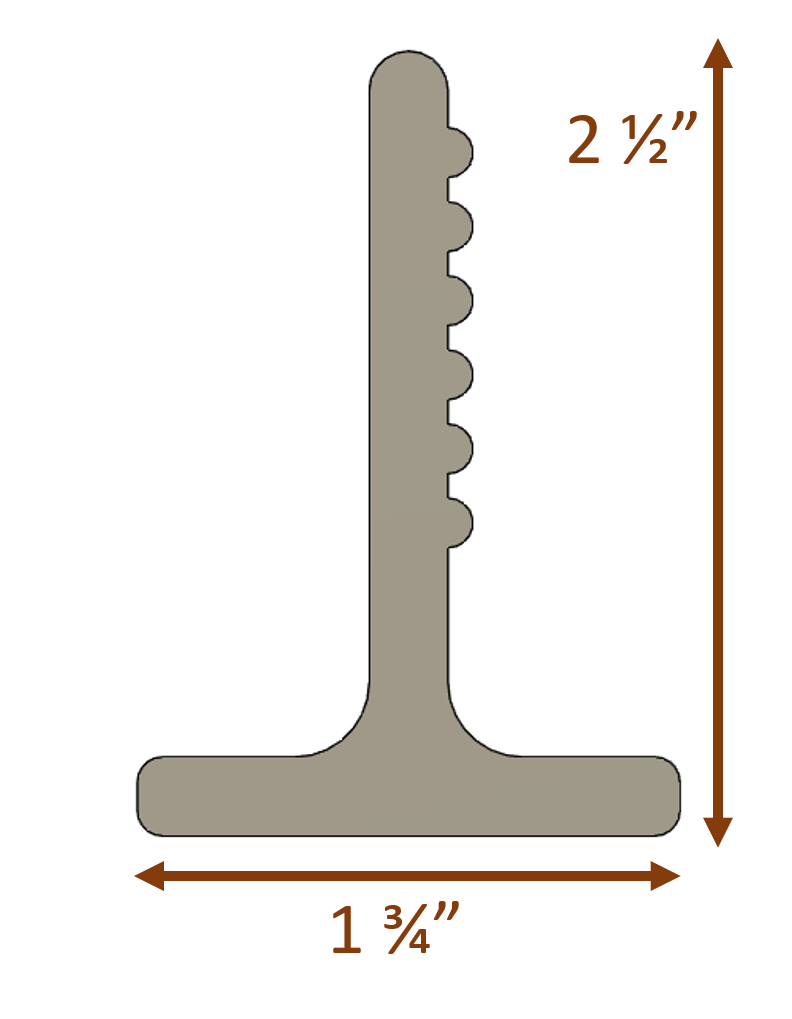

Extrusion dimensions:The overall height of the tile extrusion is 2 1/2" tall and the base is 1 3/4" wide. The overall thickness of the tile is ~1/4". The goal was to be sturdy but minimize the clay used.
Die Dimensions: The die is 4 1/2" in diameter and about 5/16" thick.
Materials
Materials
The die and cutter are 3D-printed using PLA filament. PLA is a plastic made from starch (not petrochemicals) and is compostable in industrial composters.
It is the same material used to make compostable eating utensils.
Care information
Care information
To clean, remove as much clay as possible. Let remaining clay dry completely. Soak in water and brush with soft-bristled brush. Not dishwasher safe.
Compatibility
Compatibility
LittleChip Tools is not affiliated with any extruder manufacturer. The dies are designed to be compatible with the extruders, but said compatibility is the responsibility of this store and not the extruder manufacturer. All trademarks and IP for the extruders and for the dies are the property of the respective companies.
