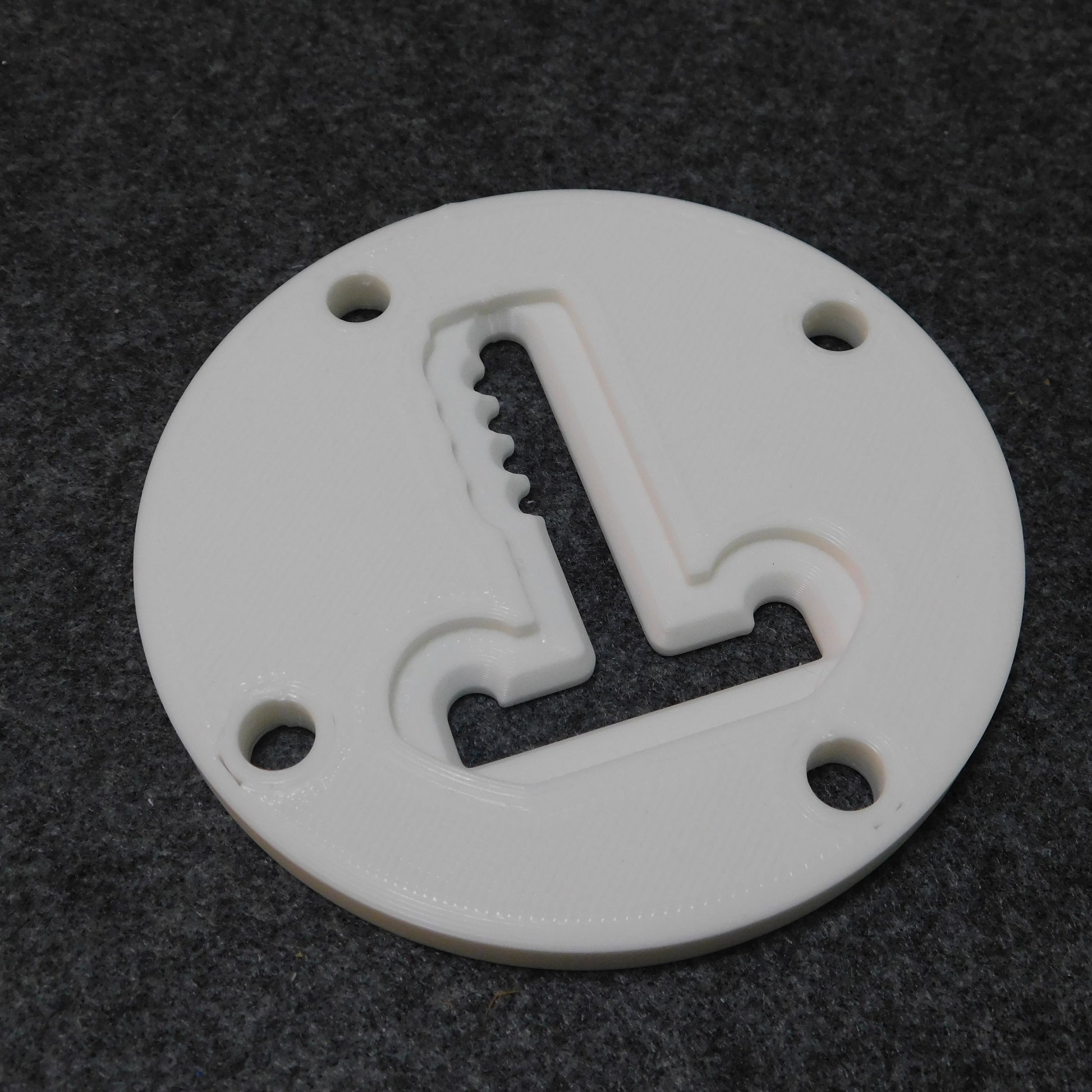

This die extrudes a shape to test glazes.

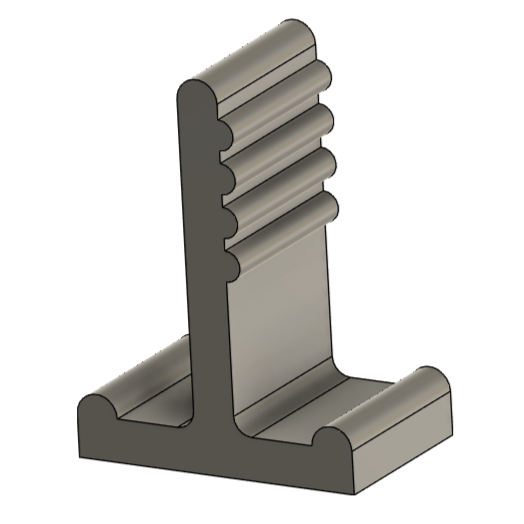

The tile has several features that might be of interest during glaze testing. On one side, a section of ridges tests how a glaze breaks across surfaces. The opposite side is smooth to see how the glaze flows down a straight wall or you can stamp this area. The base is stable to stand in a kiln.

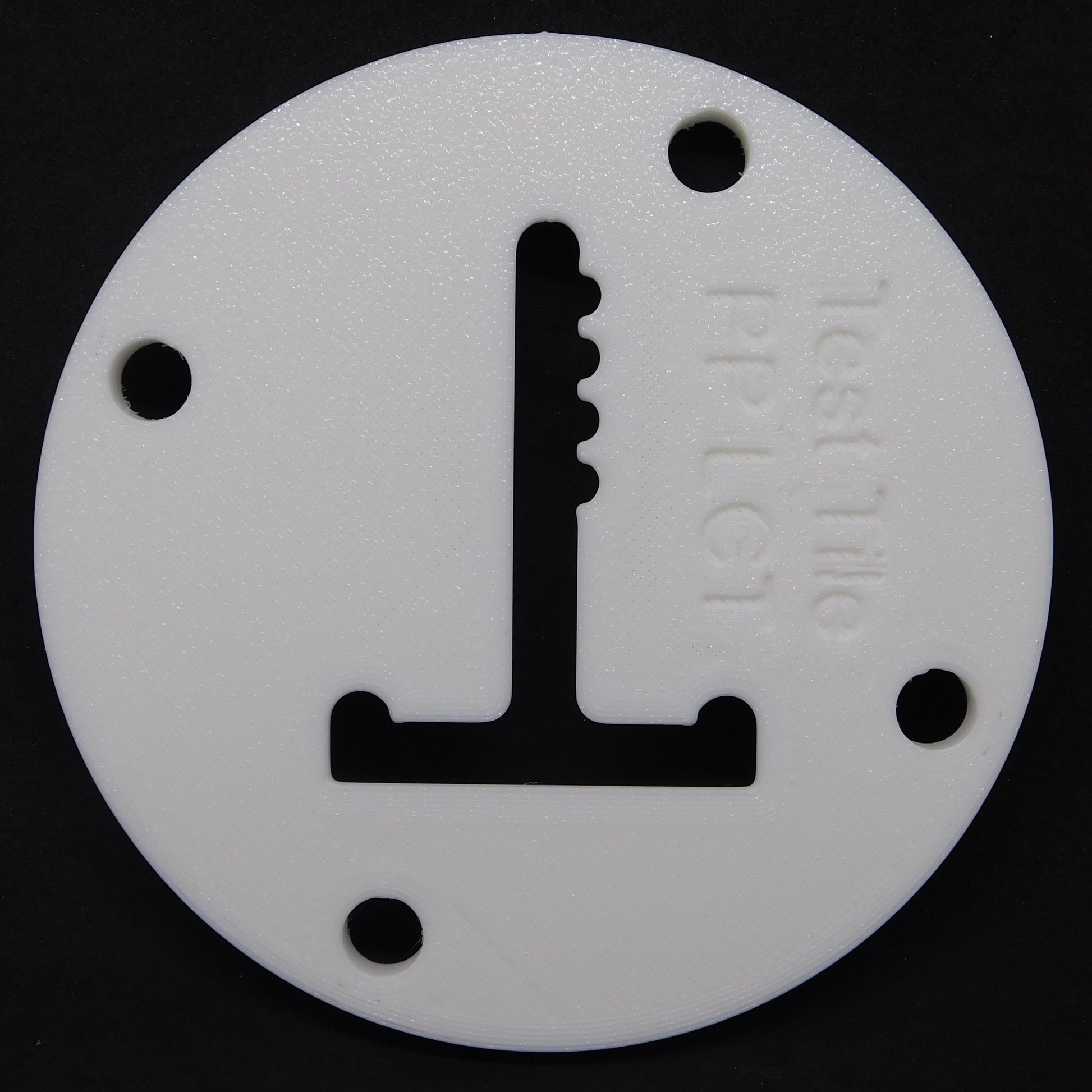

The die fits on a Peter Pugger pugmill. Please use bolts at least 3/4" long to attach the die to the end of the pugmill. (Bolts are not included). The die is to be mounted with the lettering facing out.

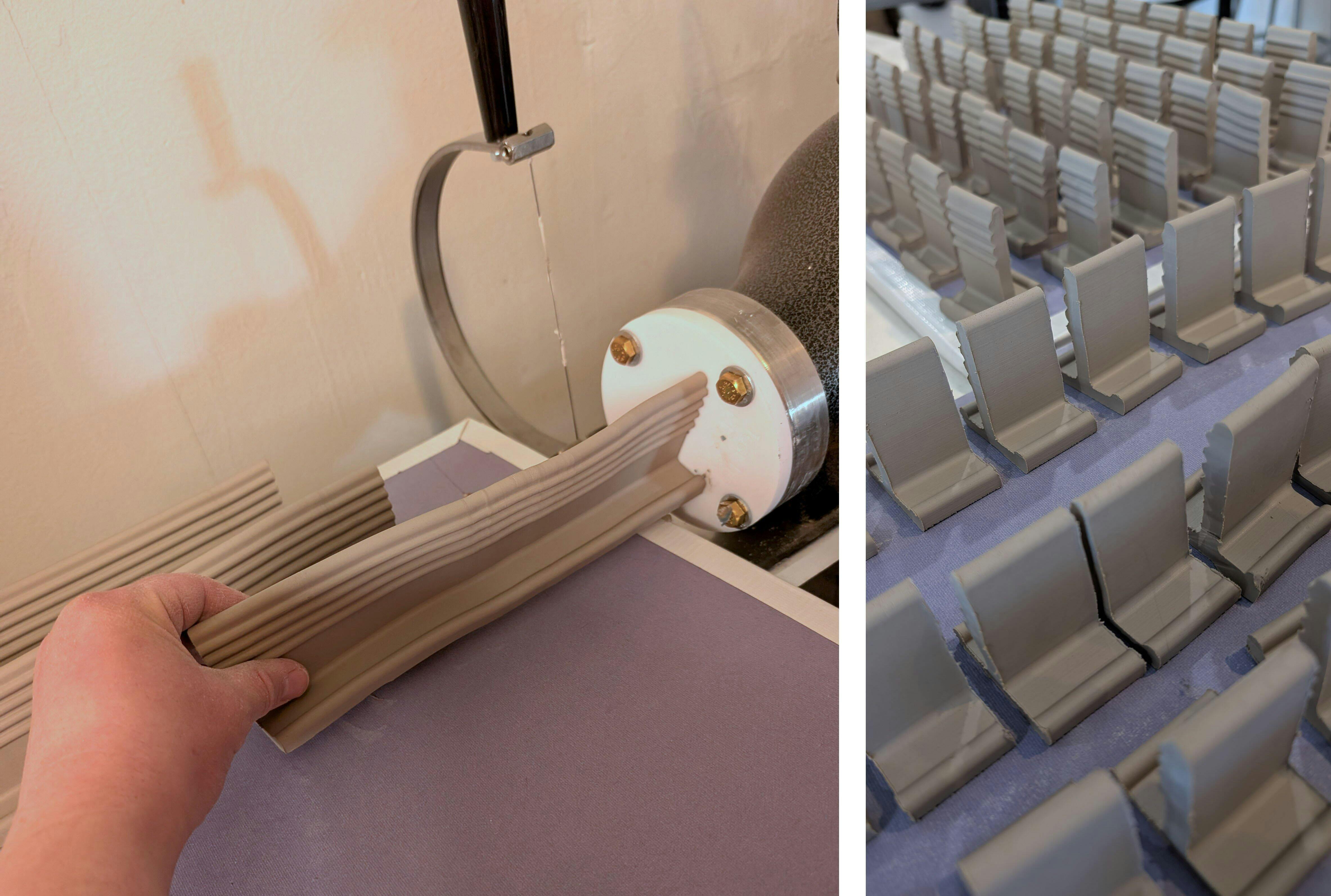

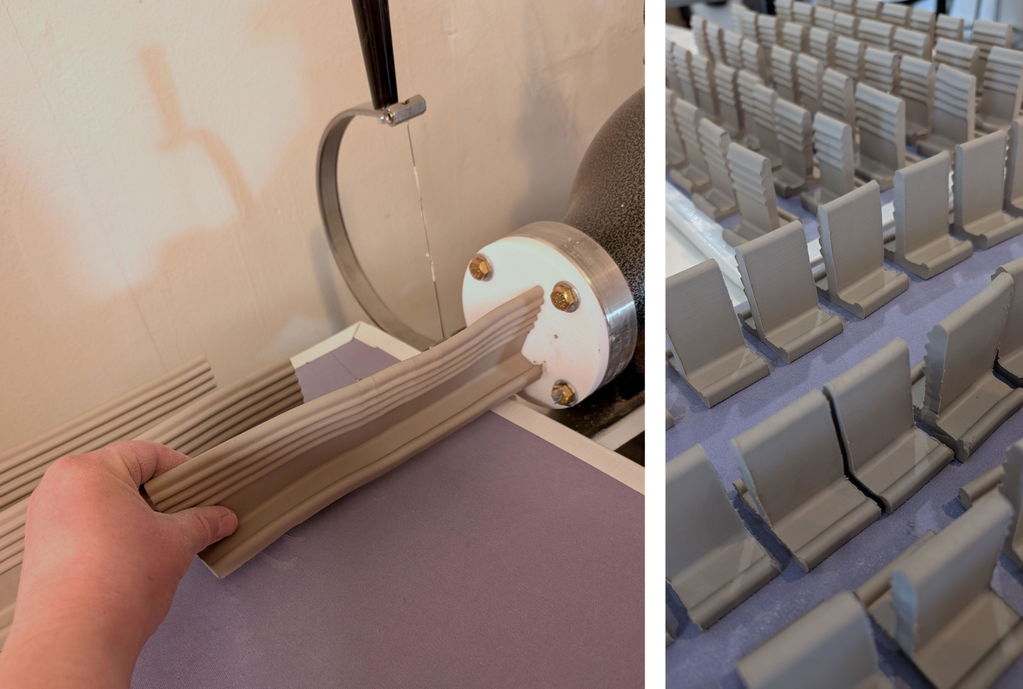

When using a die on the outlet of a pugmill, slow down the extrusion rate to lower the pressure on the clay.
Extrusion dimensions: The overall height of the tile extrusion is 2 1/2" tall and the base is 1 7/8". The overall thickness of the tile is 7mm. The goal is to be sturdy but minimize the clay used.

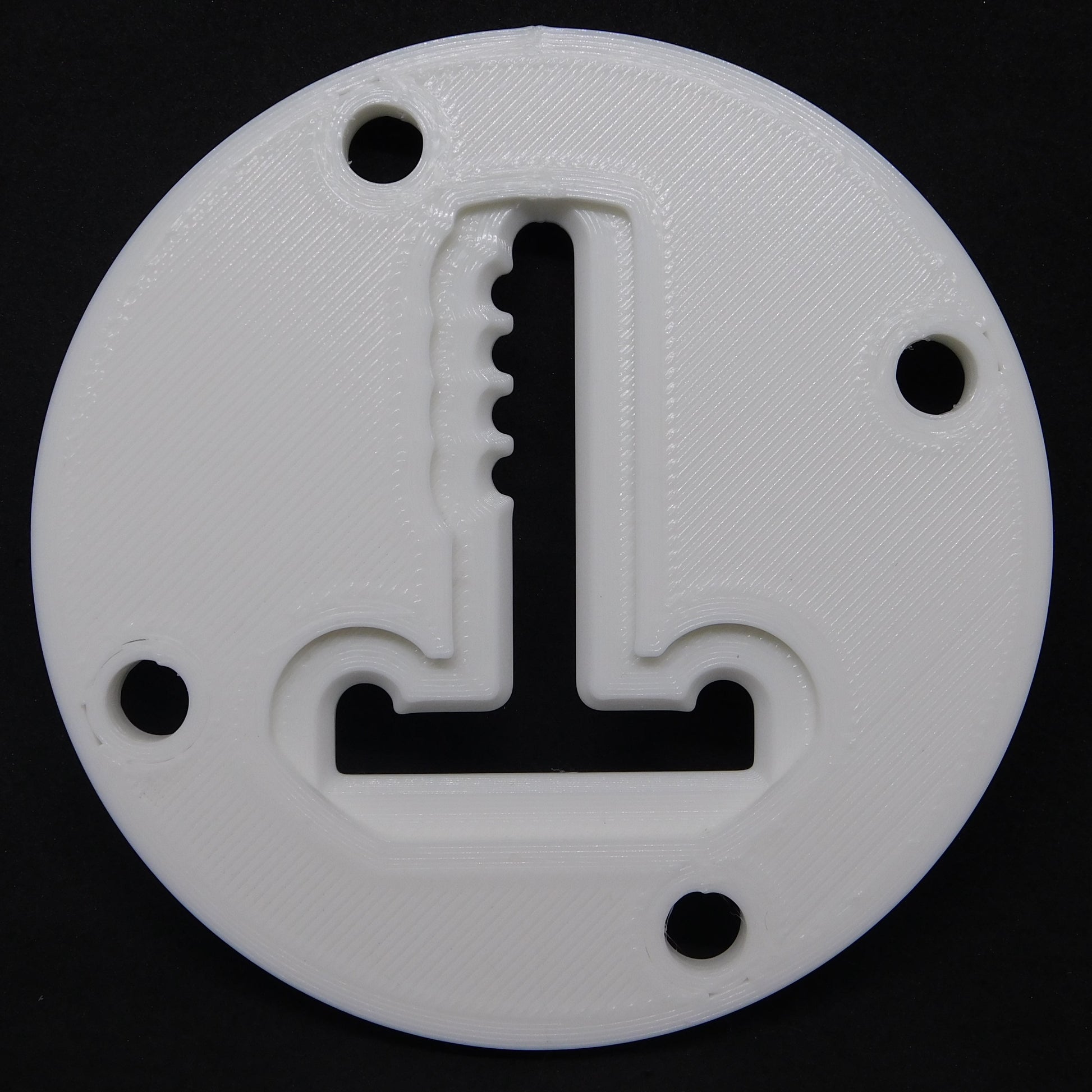

Die Dimensions: The die is 4 1/2" in diameter and 8mm thick.
Materials
Materials
The die and cutter are 3D-printed using PLA filament. PLA is a plastic made from starch (not petrochemicals) and is compostable in industrial composters.
It is the same material used to make compostable eating utensils.
Care information
Care information
To clean, remove as much clay as possible. Let remaining clay dry completely. Soak in water and brush with soft-bristled brush. Not dishwasher safe.
Compatibility
Compatibility
LittleChip Tools is not affiliated with any extruder manufacturer. The dies are designed to be compatible with the extruders, but said compatibility is the responsibility of this store and not the extruder manufacturer. All trademarks and IP for the extruders and for the dies are the property of the respective companies.
