Square Casserole Die with Blocker
Square Casserole Die with Blocker
Couldn't load pickup availability

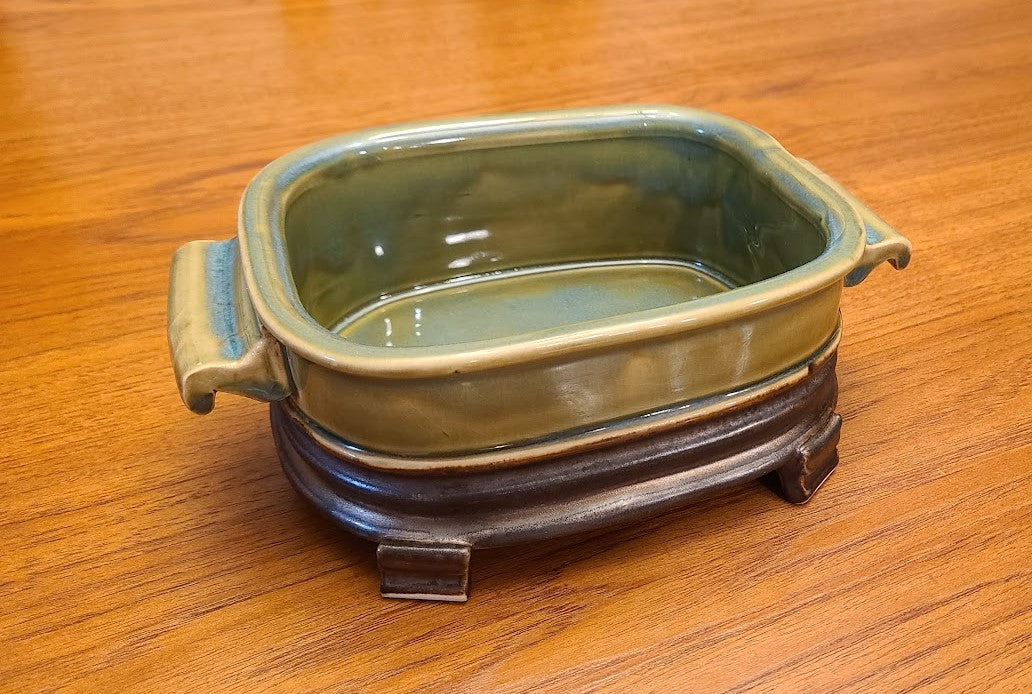

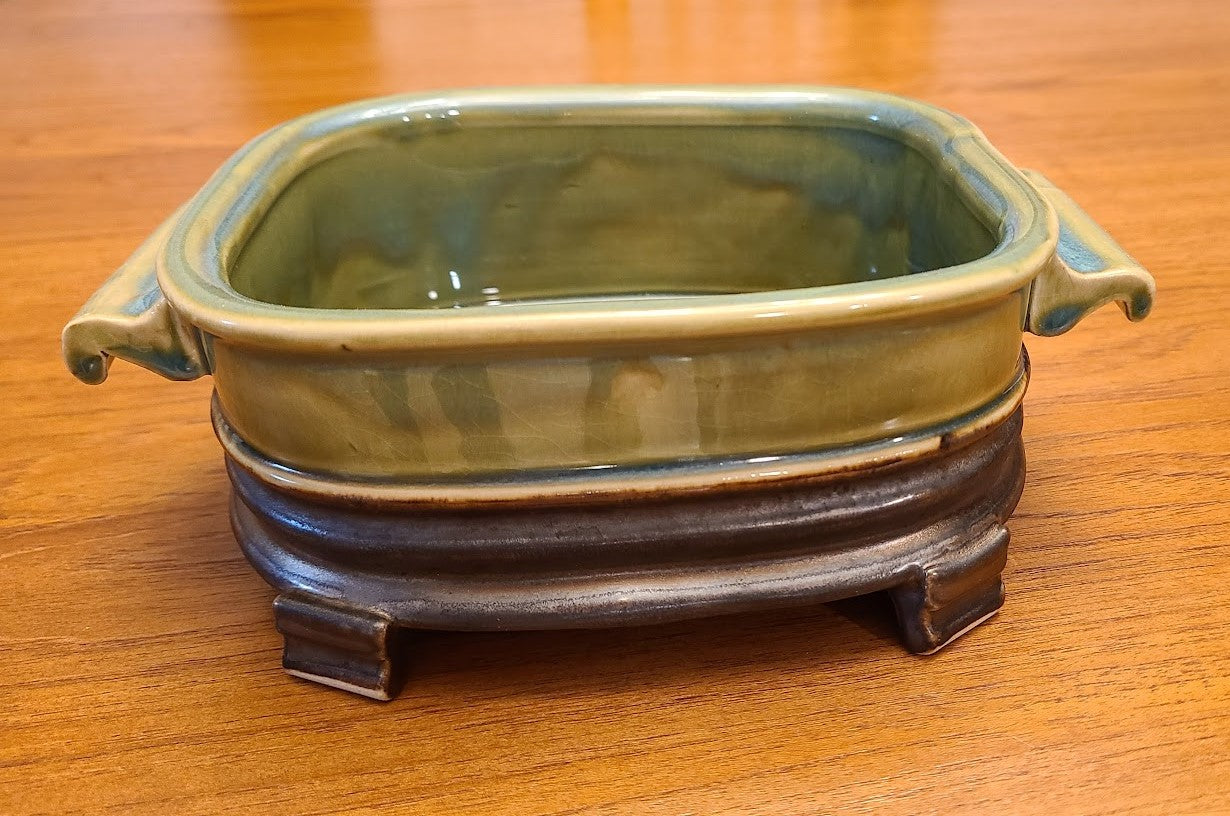

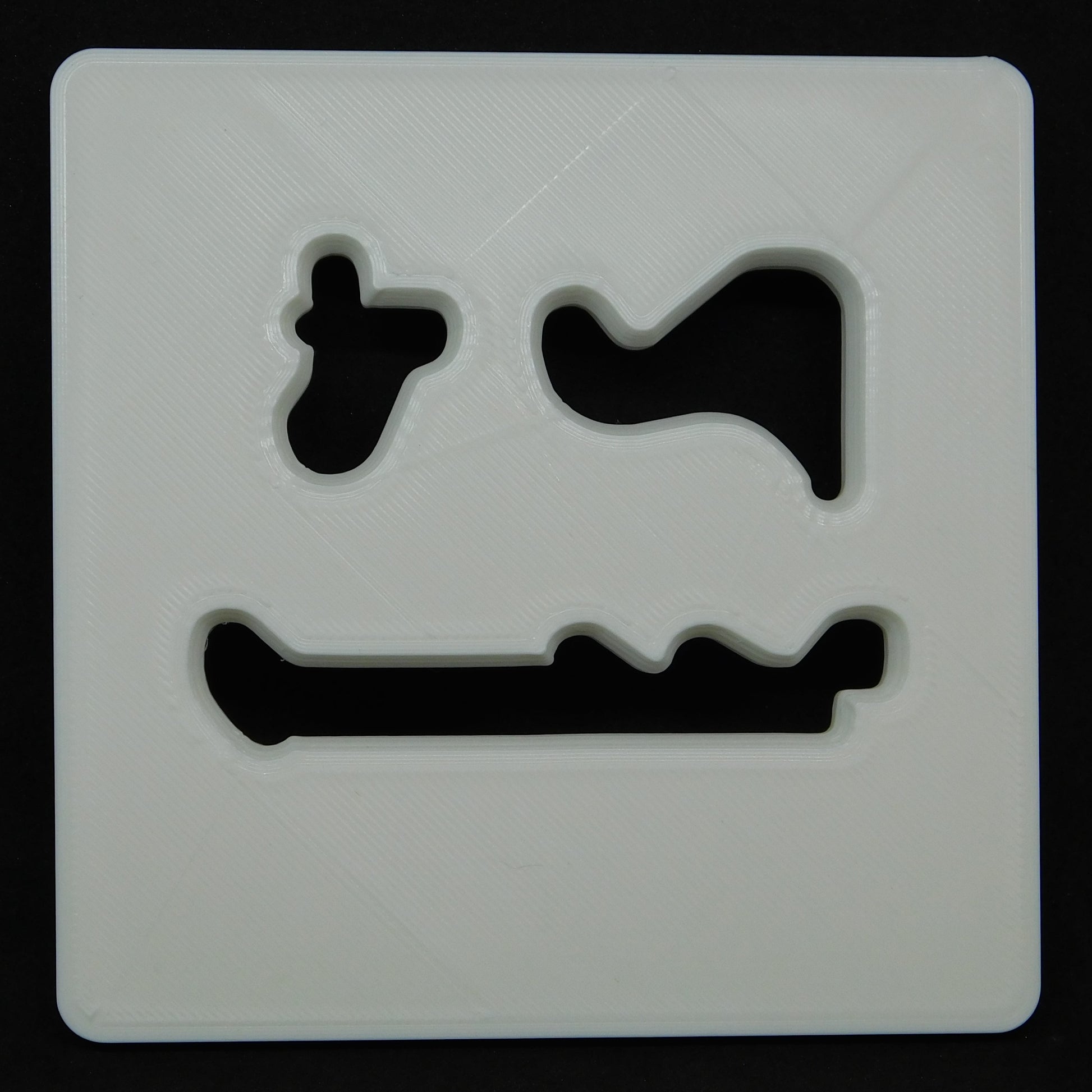

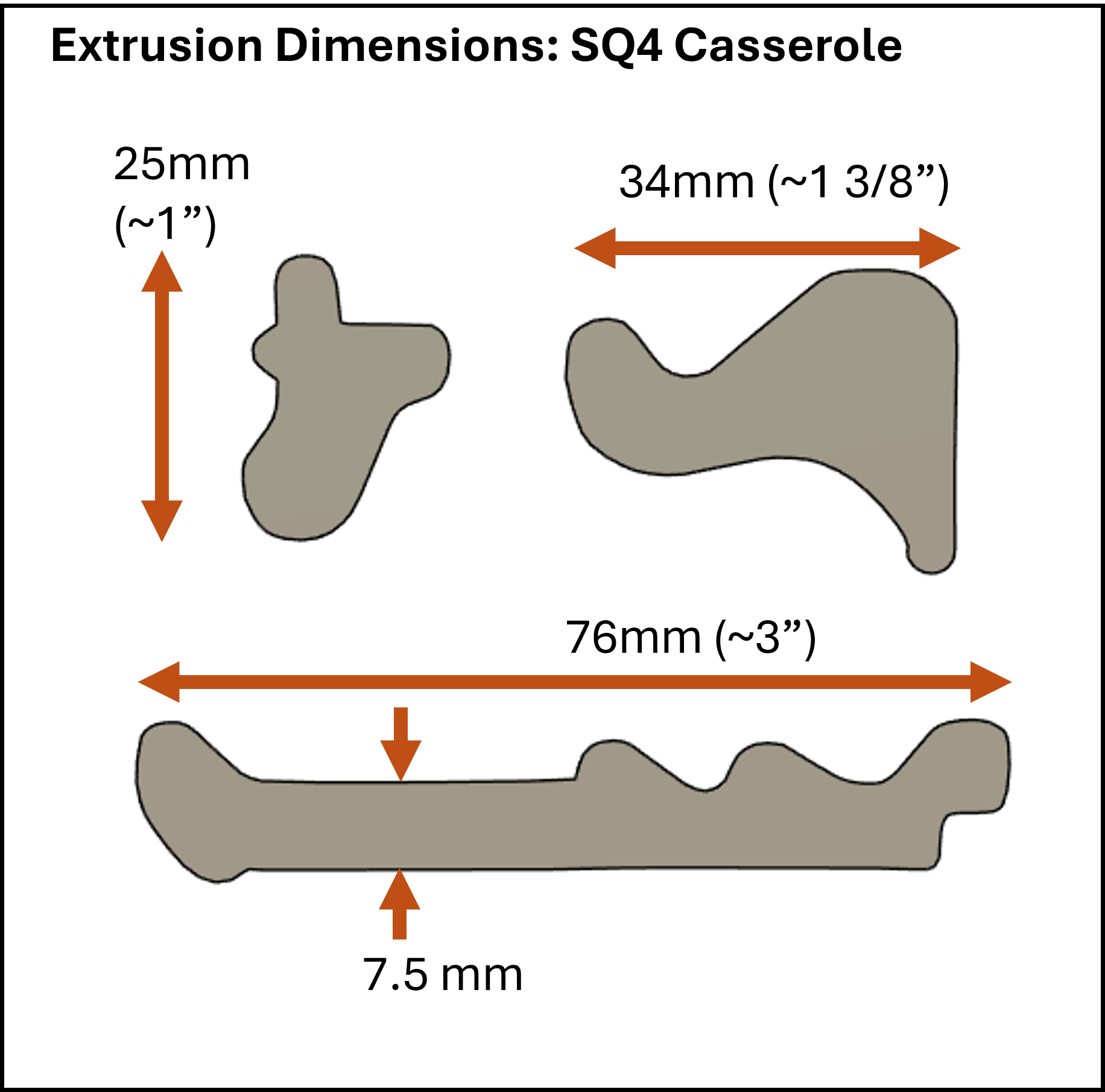

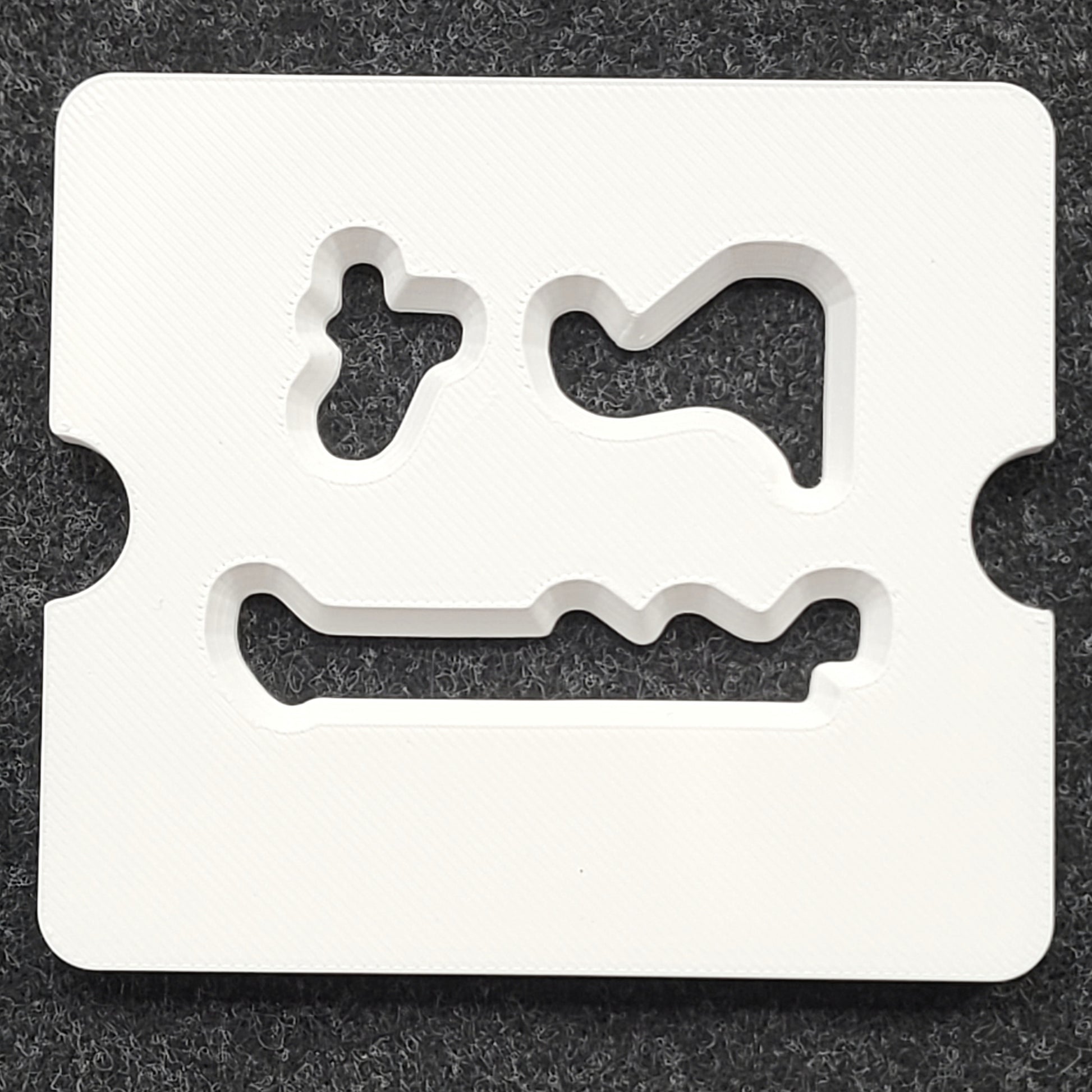

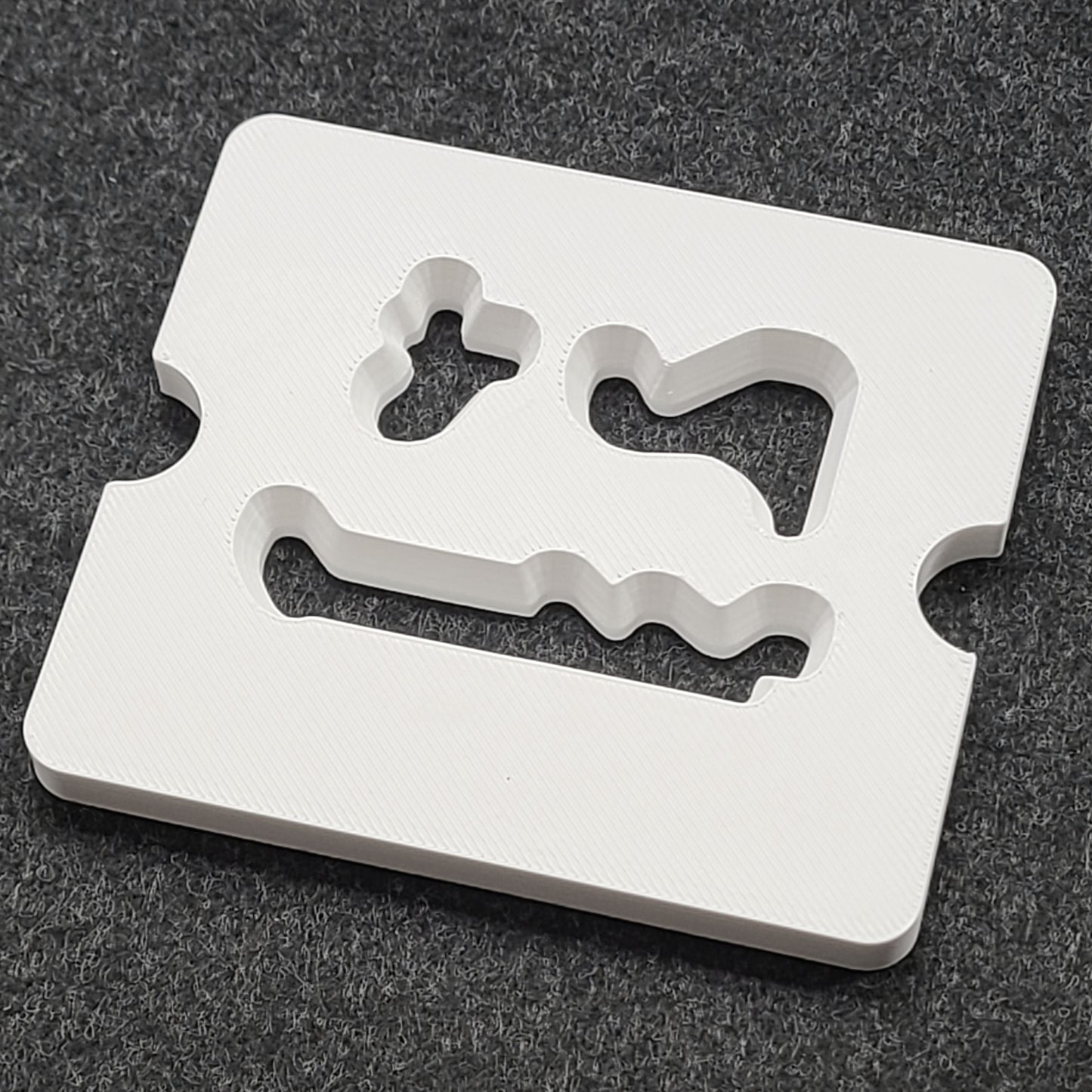

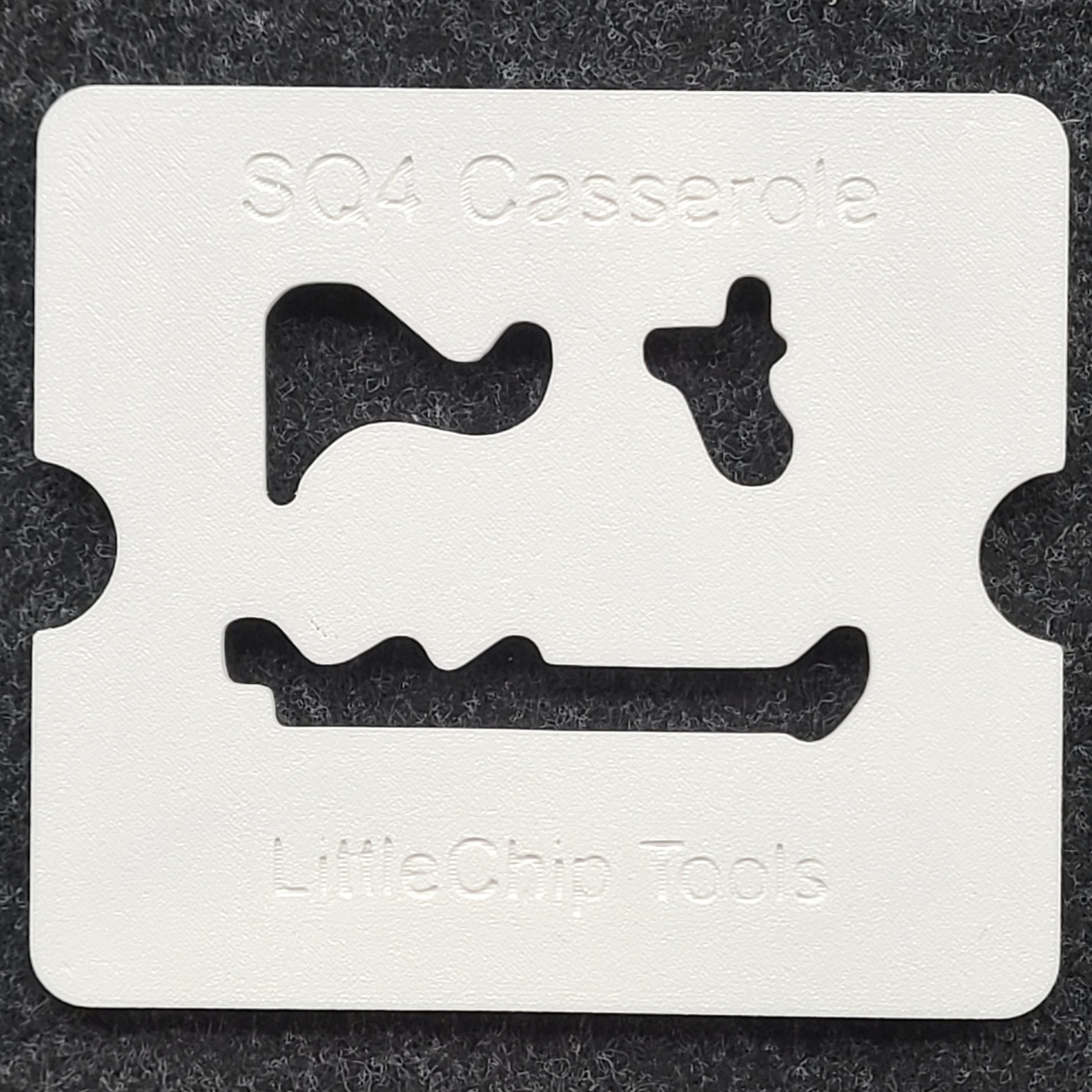

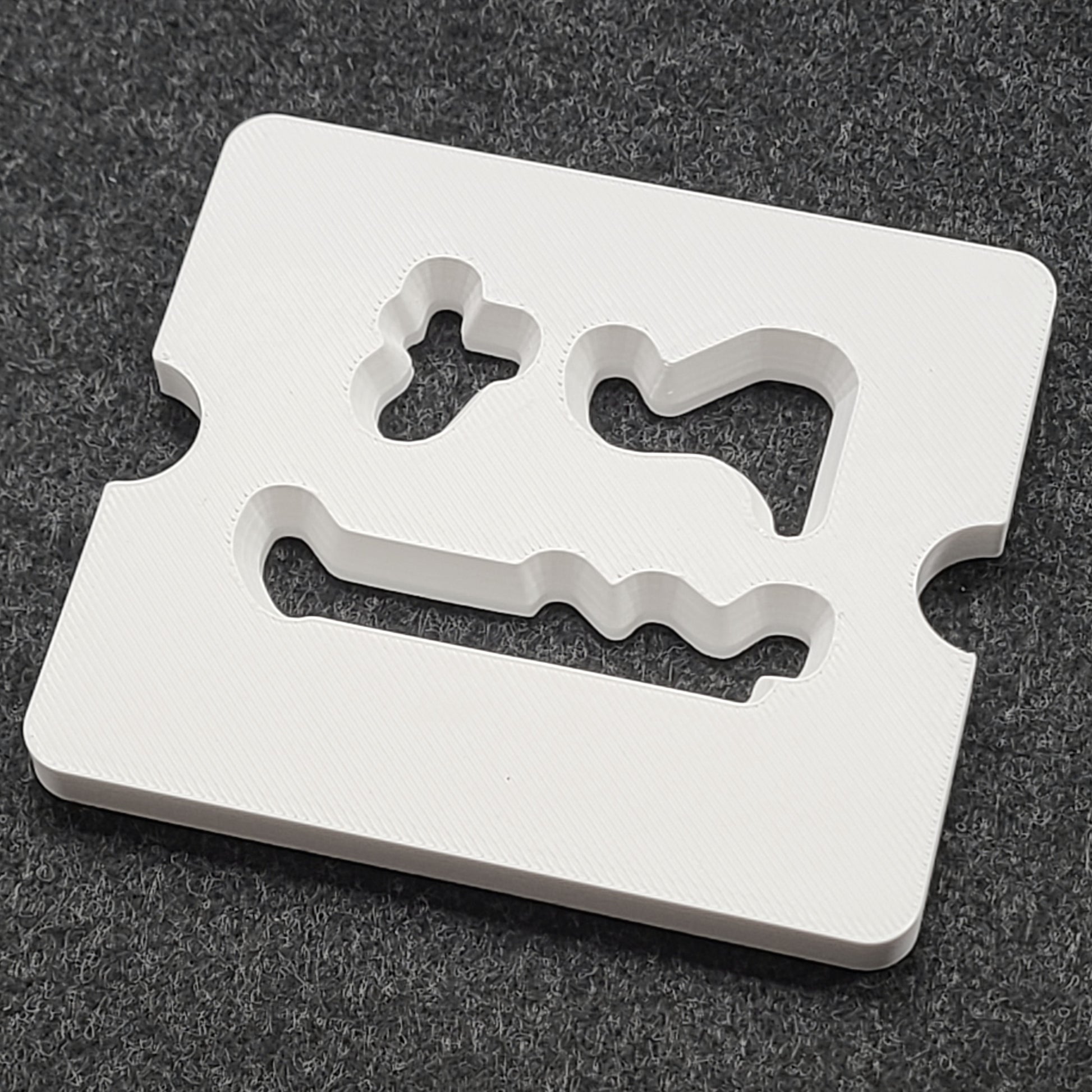

This die extrudes three parts of a casserole dish: the walls, handles, and feet. The dish wall height is 3" (before firing).
This die works with the North Star 4" and TA Metal Works 4" square extruders.

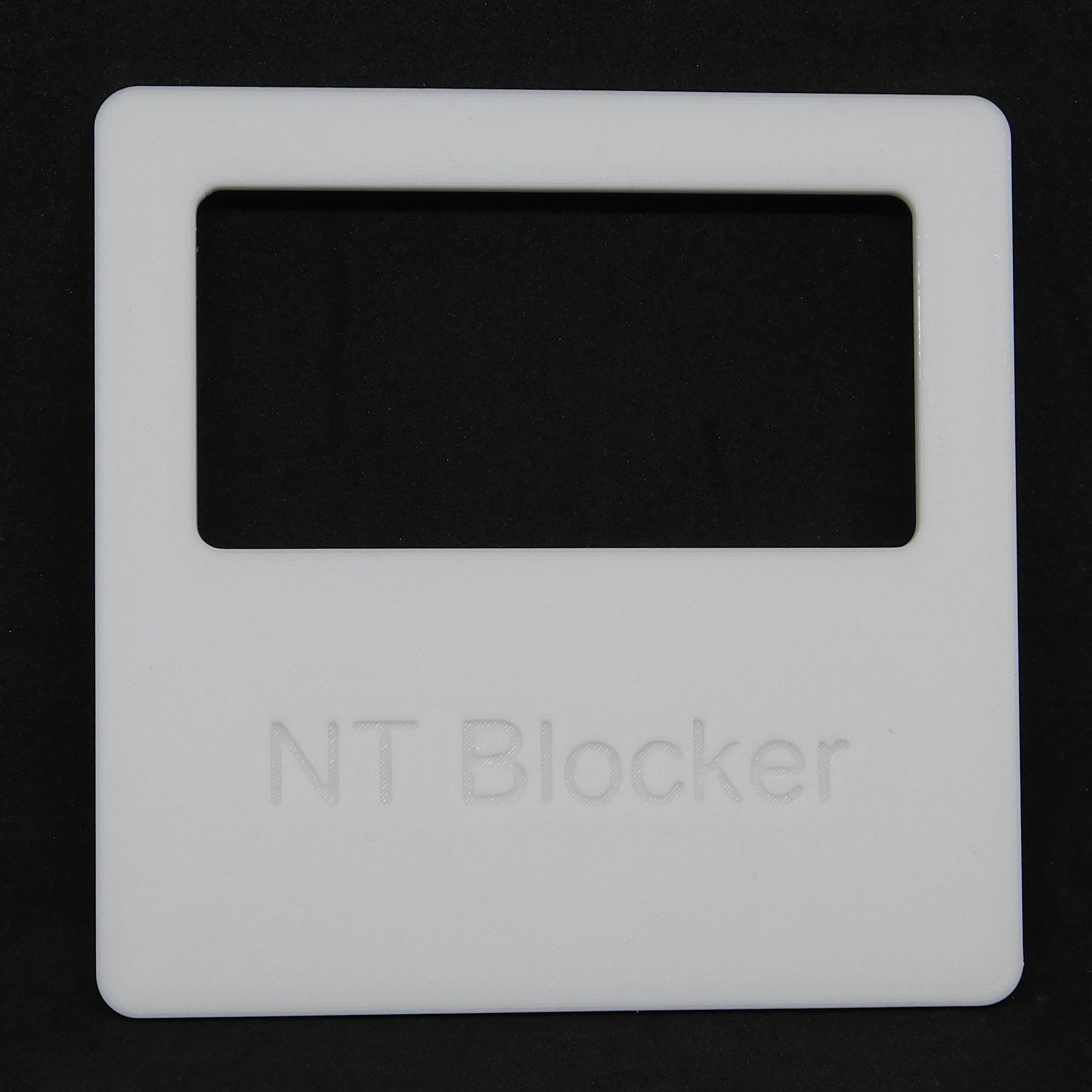

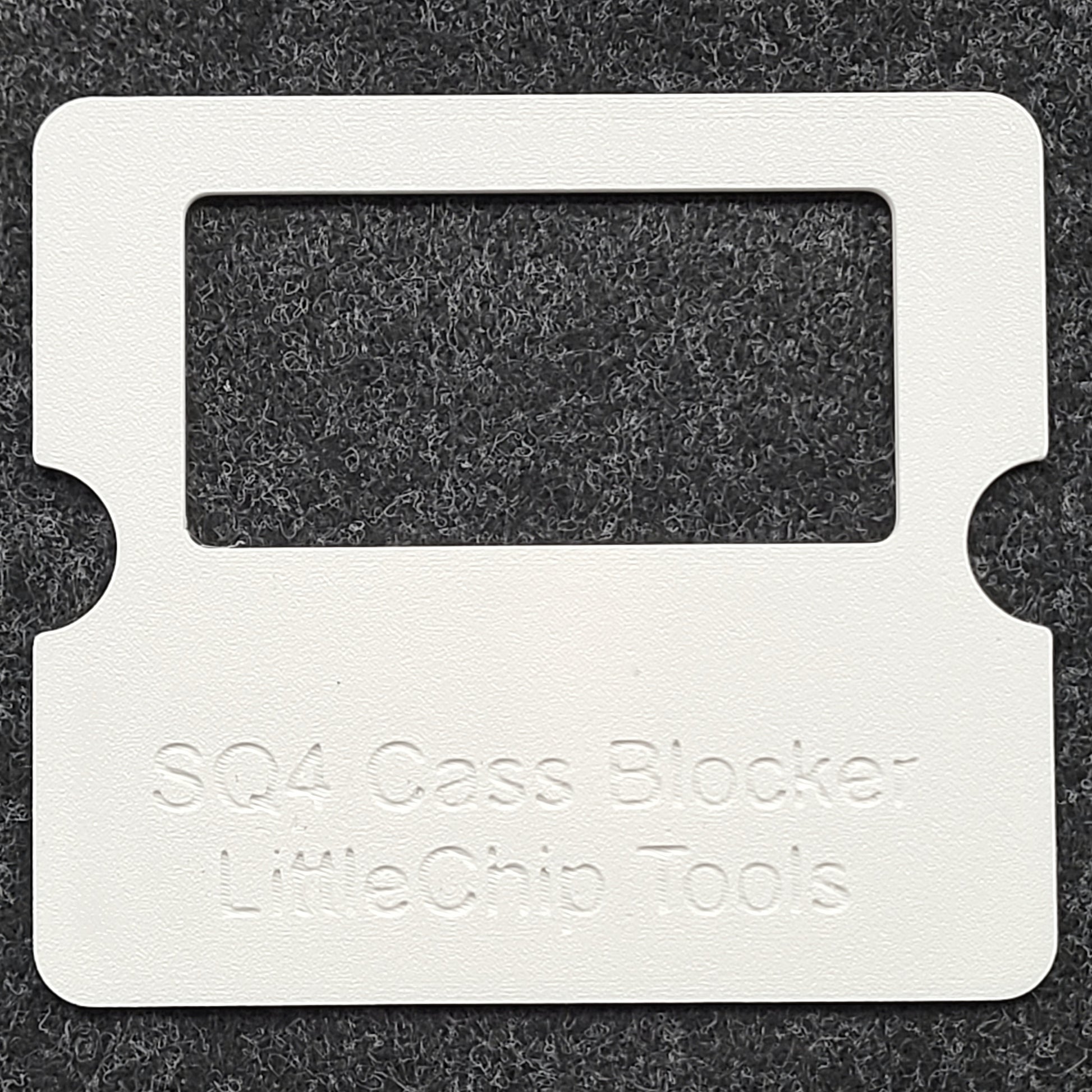

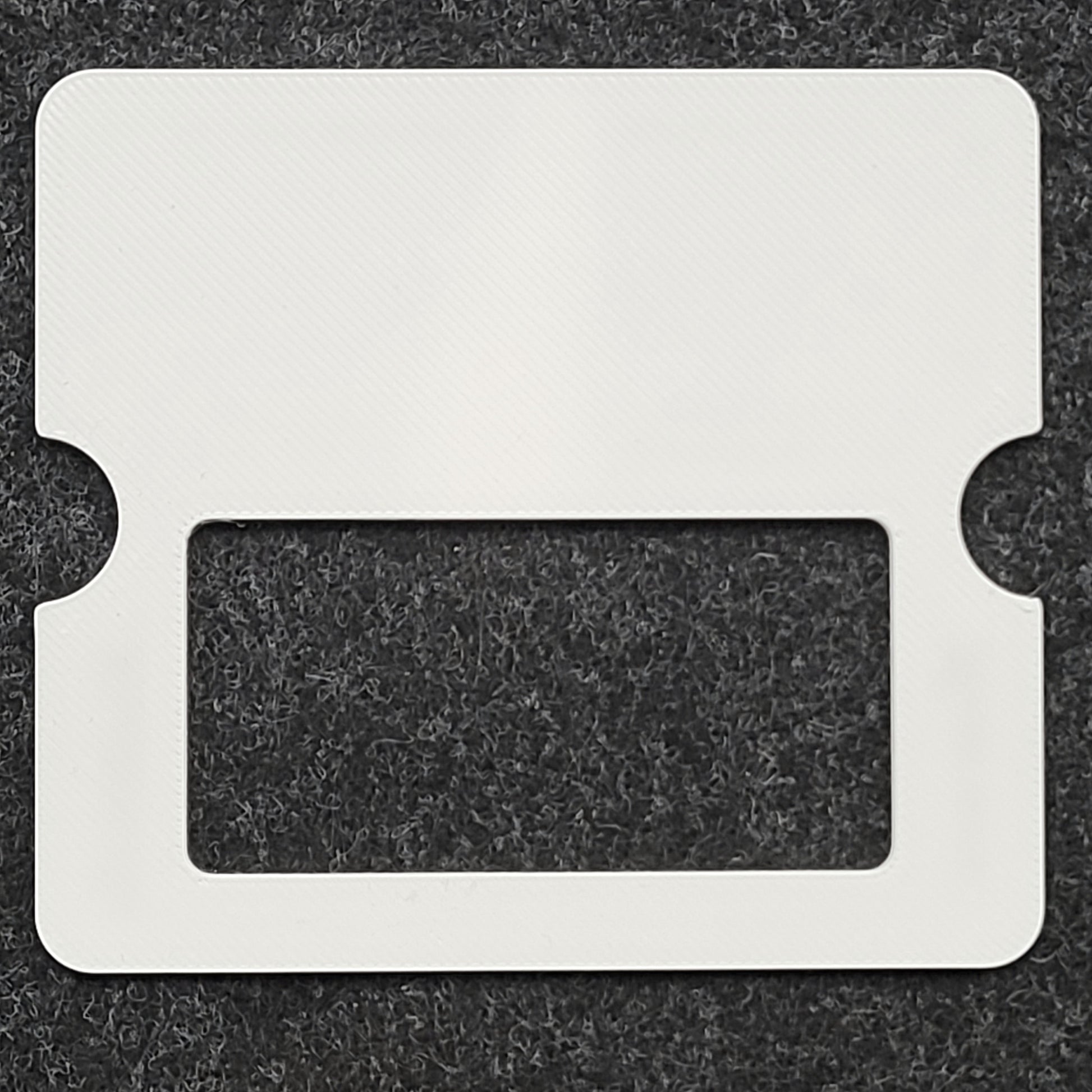

To make a dish, 2' to 4' of wall is needed, but only ~6" of feet and handles. The included blocker is used to block off the handle and footer shapes. A recommended approach is to start with the blocker in place, extrude the needed length of walls, remove the blocker, and then extrude the needed length of handles and feet.
Using the blocker is optional. One can extrude all three shapes and recycle the excess handle and footer extrusions.
This design was originally made by Old Ash Artisans and is modified and reproduced here by permission. You can watch their YouTube video on how to use the die.

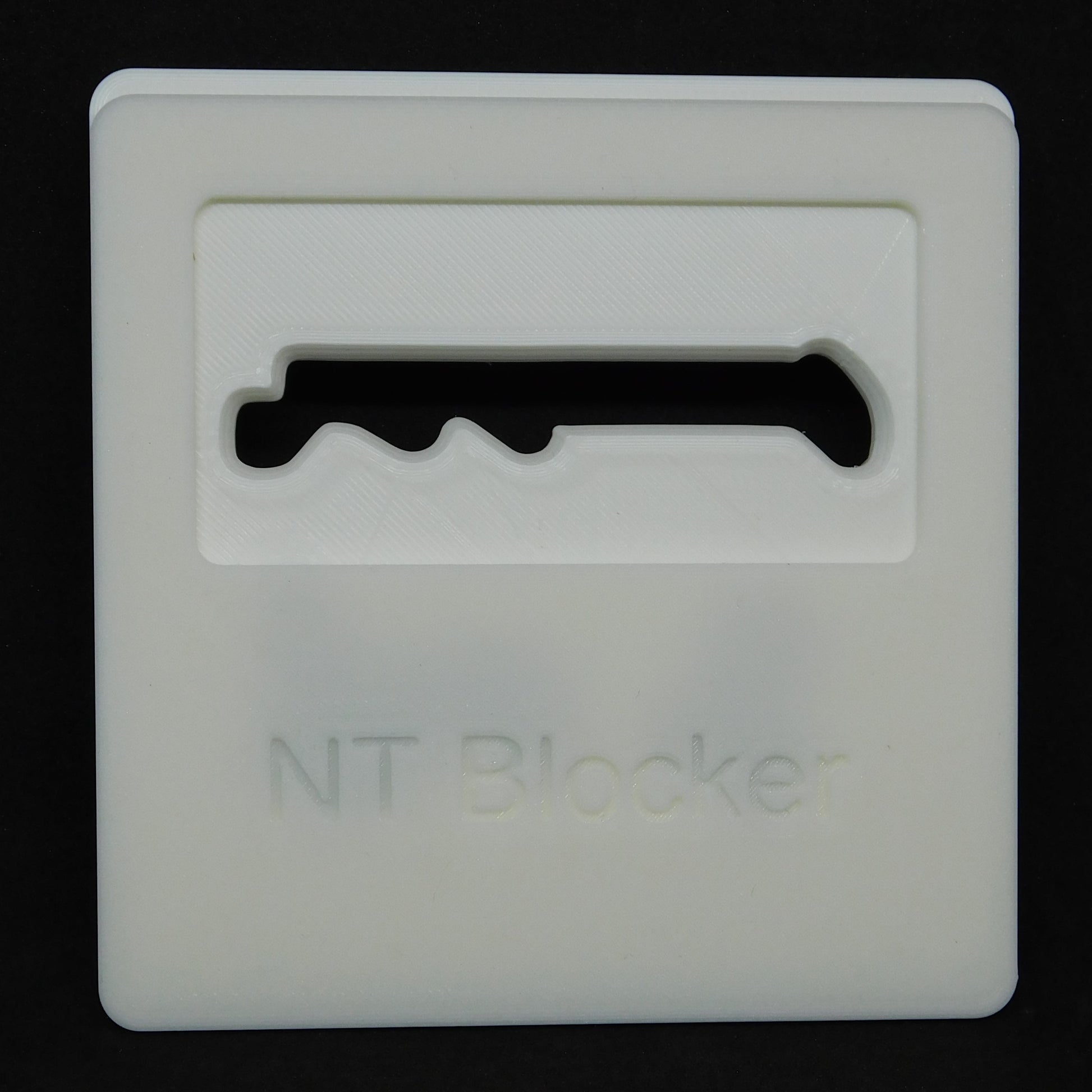

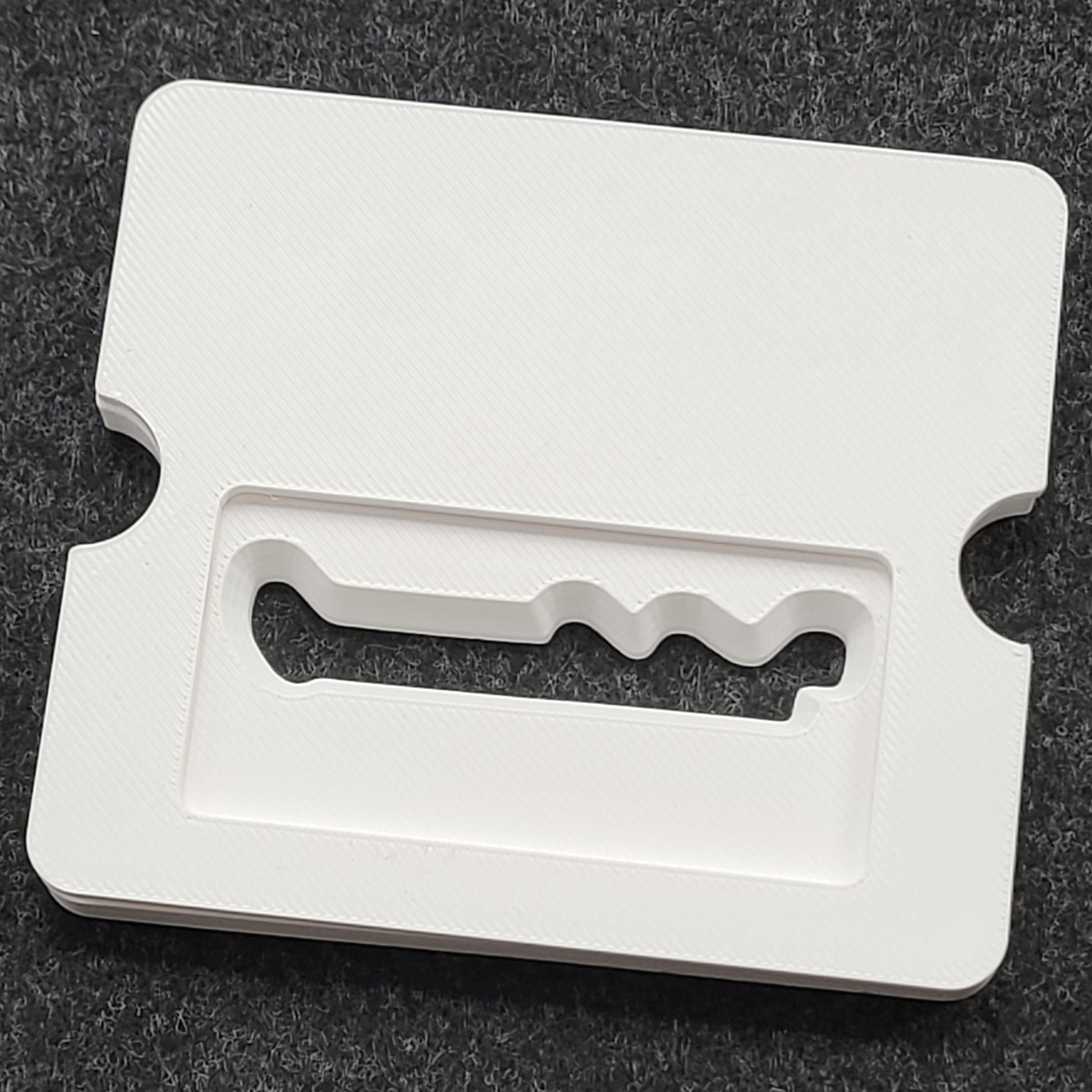

The blocker should be used on top of the extrusion die.
Materials
Materials
The die and cutter are 3D-printed using PLA filament. PLA is a plastic made from starch (not petrochemicals) and is compostable in industrial composters.
It is the same material used to make compostable eating utensils.
Care information
Care information
To clean, remove as much clay as possible. Let remaining clay dry completely. Soak in water and brush with soft-bristled brush. Not dishwasher safe.
Compatibility
Compatibility
LittleChip Tools is not affiliated with any extruder manufacturer. The dies are designed to be compatible with the extruders, but said compatibility is the responsibility of this store and not the extruder manufacturer. All trademarks and IP for the extruders and for the dies are the property of the respective companies.
