Brent Octagonal Die
Brent Octagonal Die
Couldn't load pickup availability
This die extrudes an octagonal shape with a relatively thin 5mm wall (~3/16"). The die is compatible with 4" round Brent clay extruders.

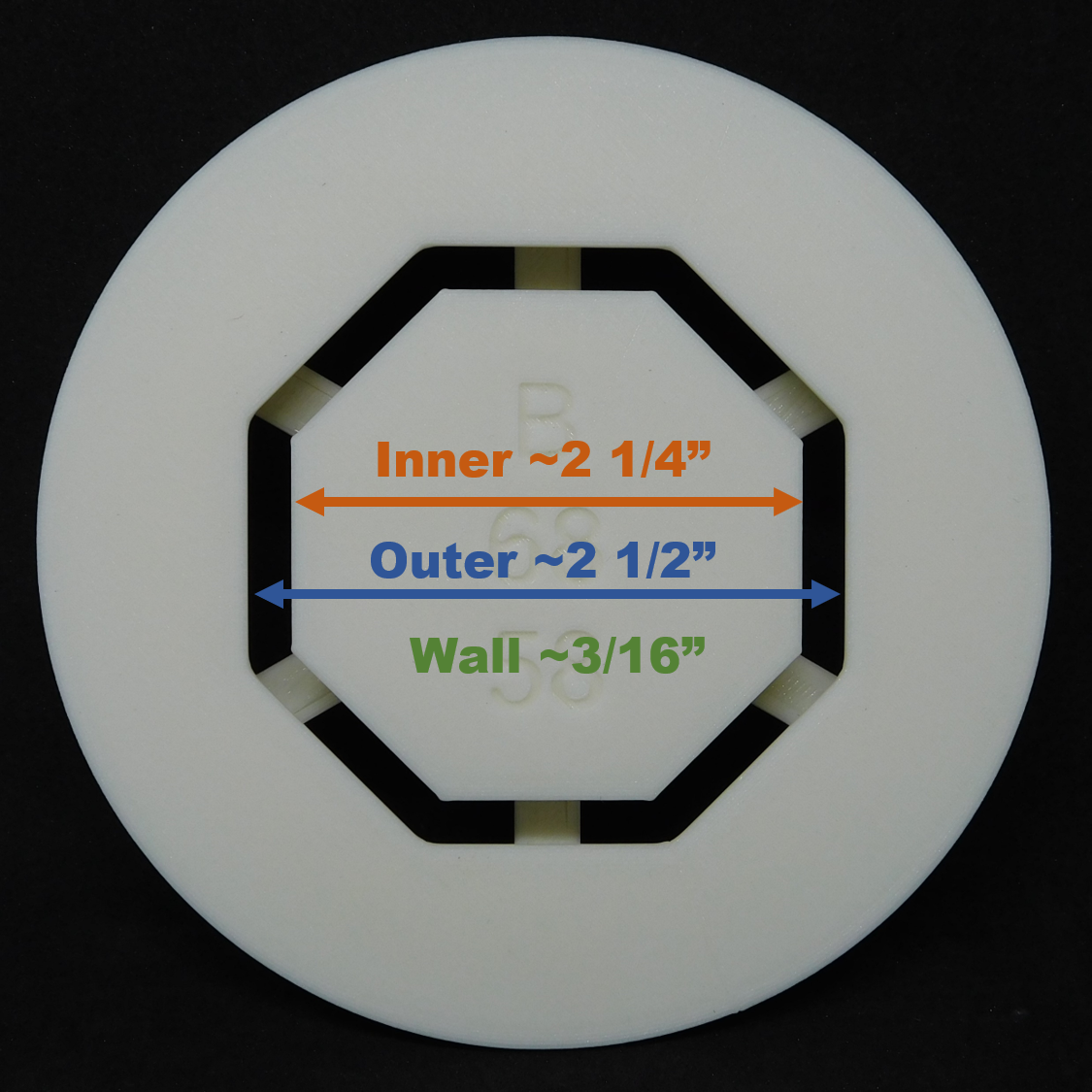

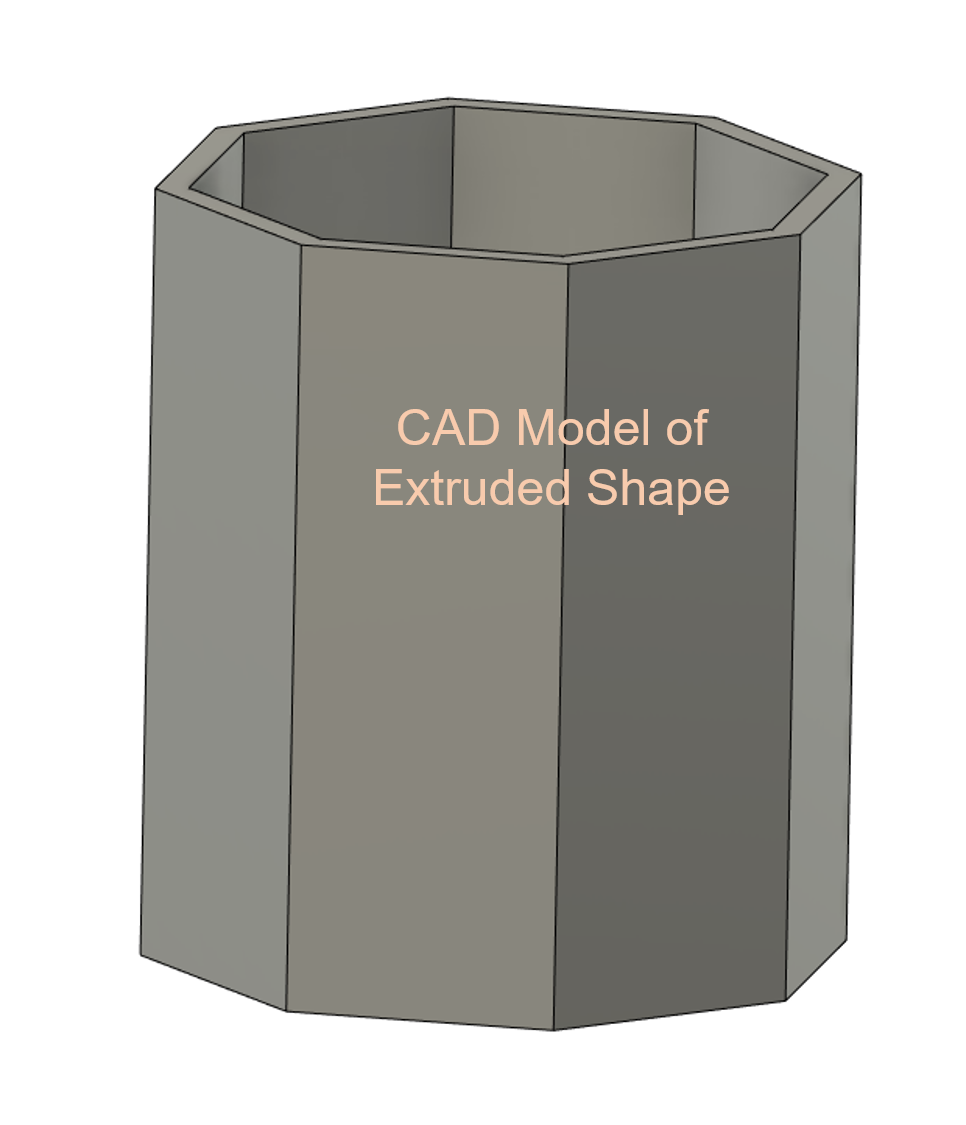

Extrusion Dimensions: The inner width of the extrusion is 58mm (~2 1/4"), and the maximum width of the outer shape is 68mm (~2 1/2"). The wall thickness is 5mm (~3/16").
Die Dimensions: Overall dimensions are 4 1/2" in diameter and 1" tall.
Base Cutter: The corresponding cutter is optional. It is useful to cut a base that exactly matches the extruded shape to make a vase or tumbler. The cutter is 3/4" tall.
Materials
Materials
The die and cutter are 3D-printed using PLA filament. PLA is a plastic made from starch (not petrochemicals) and is compostable in industrial composters.
It is the same material used to make compostable eating utensils.
Care information
Care information
To clean, remove as much clay as possible. Let remaining clay dry completely. Soak in water and brush with soft-bristled brush. Not dishwasher safe.
Compatibility
Compatibility
LittleChip Tools is not affiliated with any extruder manufacturer. The dies are designed to be compatible with the extruders, but said compatibility is the responsibility of this store and not the extruder manufacturer. All trademarks and IP for the extruders and for the dies are the property of the respective companies.
