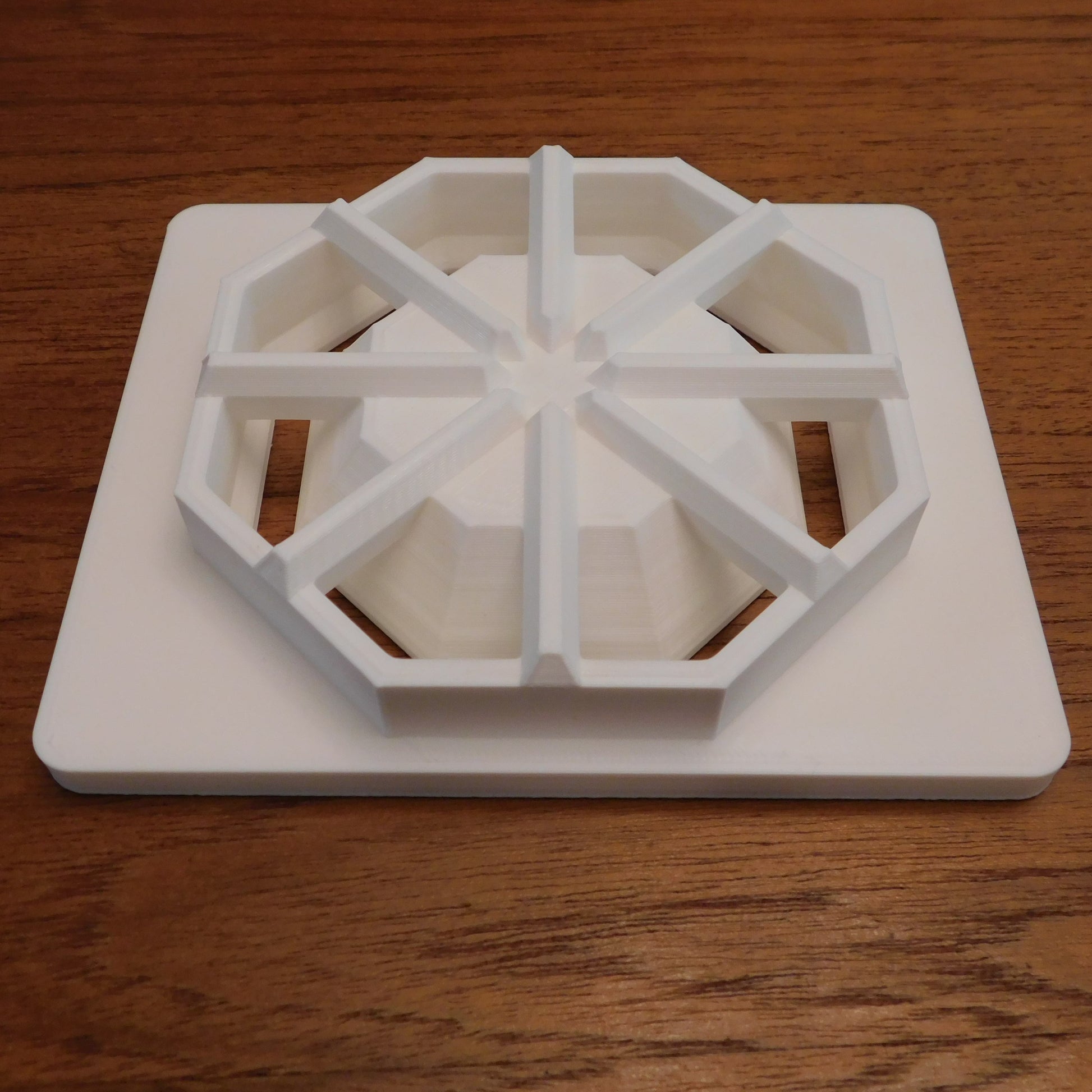

This die extrudes an octagonal shape. It fits in 5" Bailey clay extruders.

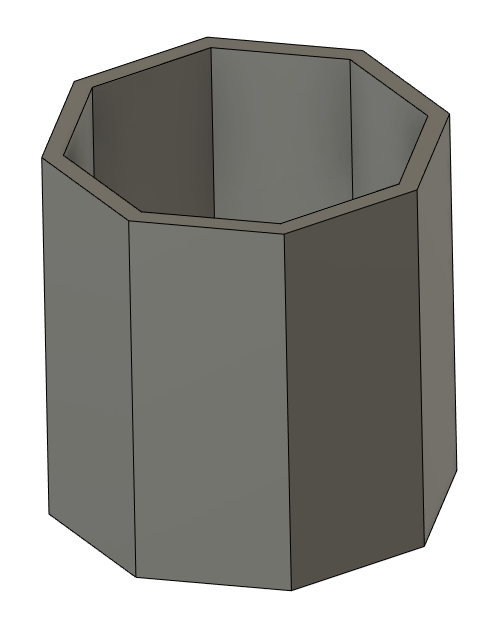

Extrusion Dimensions: The inside width of the extrusion is 3 3/8" and the outer width is 3 7/8". The wall thickness is ~1/4".

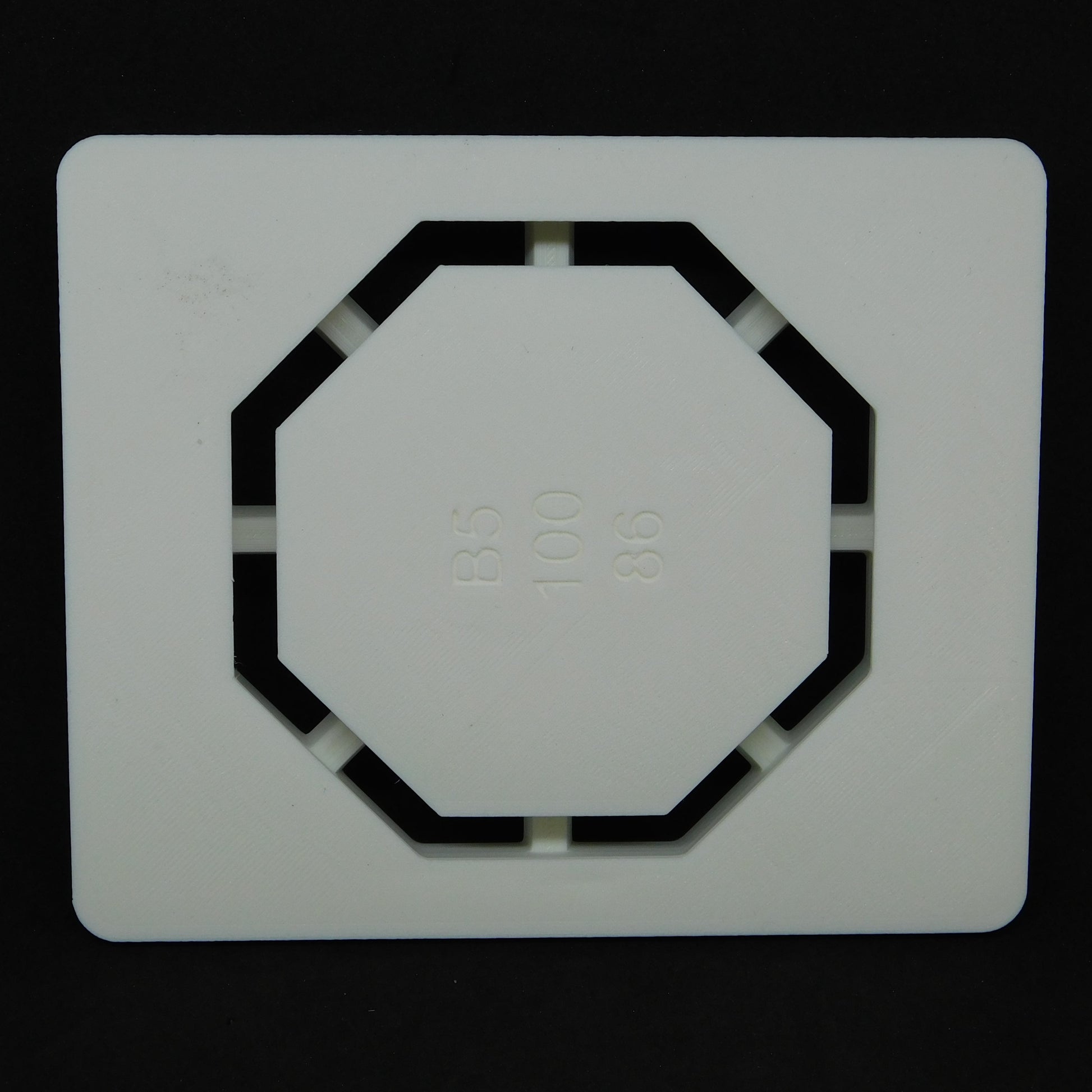

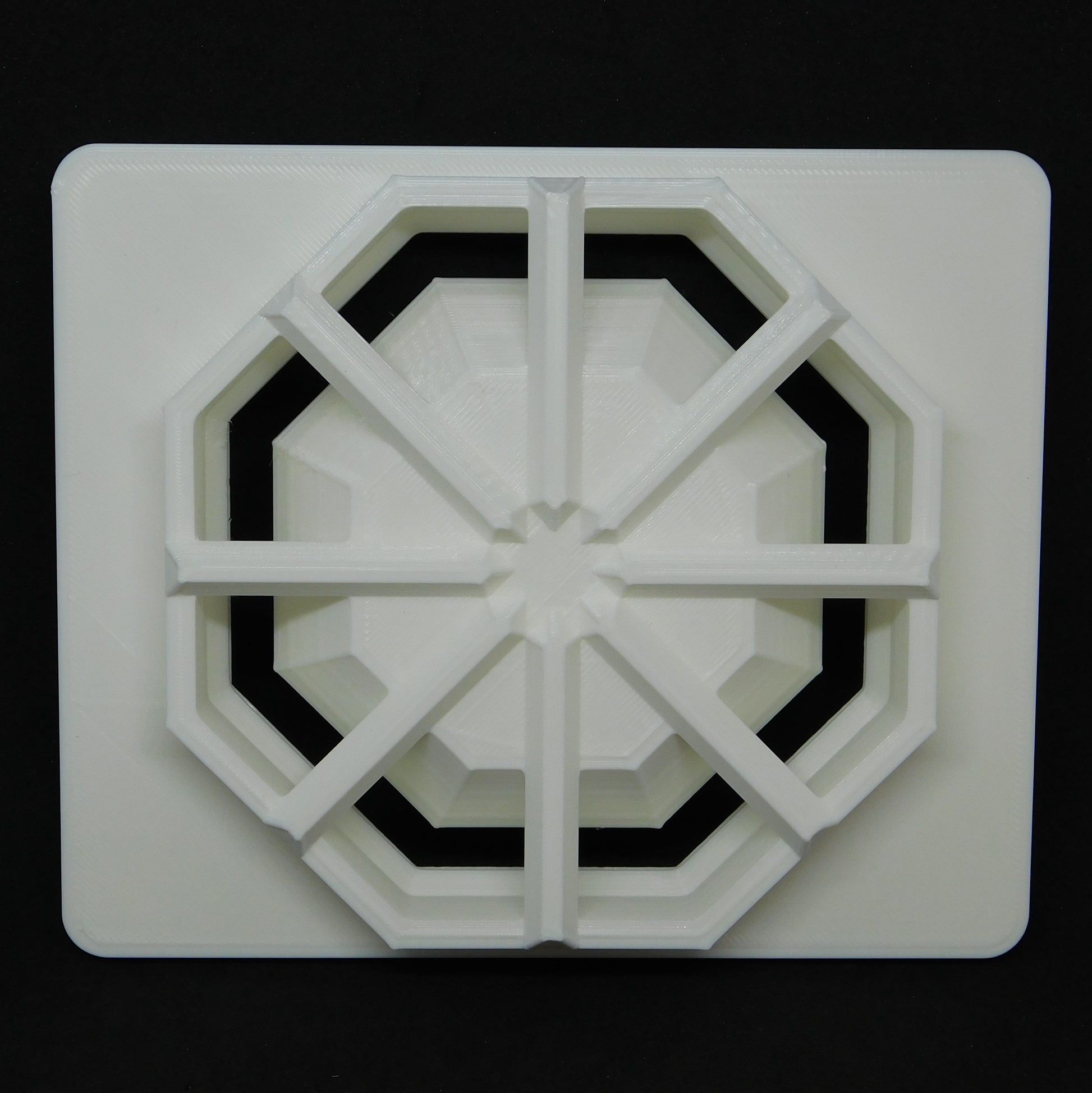

Die Dimensions: Overall dimensions of the die are 5" x 6" and about 1" tall.

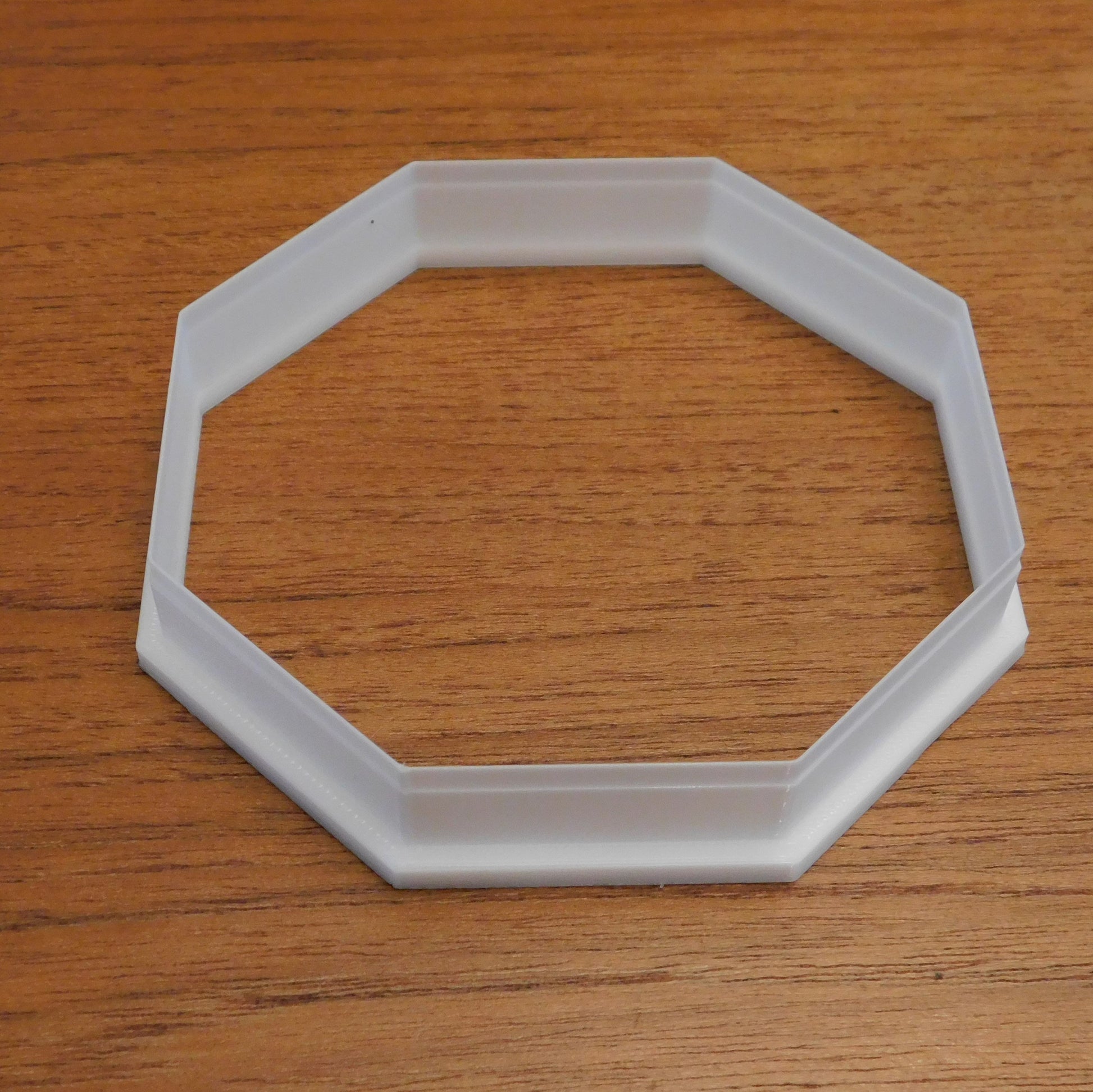

Base Cutter: The corresponding cutter is optional. It can be useful to cut a base that exactly matches the extruded shape. The cutter is 3/4" tall.
Materials
Materials
The die and cutter are 3D-printed using PLA filament. PLA is a plastic made from starch (not petrochemicals) and is compostable in industrial composters.
It is the same material used to make compostable eating utensils.
Care information
Care information
To clean, remove as much clay as possible. Let remaining clay dry completely. Soak in water and brush with soft-bristled brush. Not dishwasher safe.
Compatibility
Compatibility
LittleChip Tools is not affiliated with any extruder manufacturer. The dies are designed to be compatible with the extruders, but said compatibility is the responsibility of this store and not the extruder manufacturer. All trademarks and IP for the extruders and for the dies are the property of the respective companies.
